SYNCHRONIZATION TEST 4 configurations,28 cameras, 10 shots each (5 for last) Camera are triggered via a gentStereo trigger that also triggers and external flash. We spent some time to synchronize the flash with all cams, this was the best result we achieved. We tried SDM 1.86 also but have not been able to synch with flash at all... maybe we missed something but it seems results were so random that synch flash was impossible... By comparing exposure of all shots you can have an idea of which shots were succesfull and which went out the flash time window |
|||

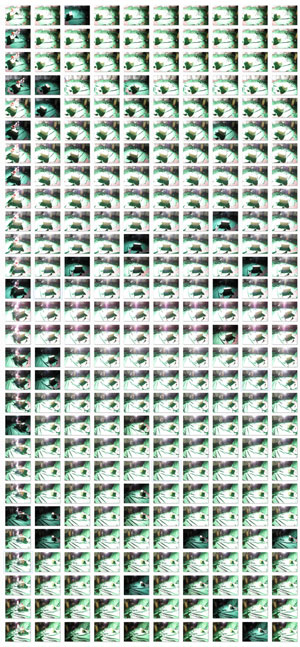

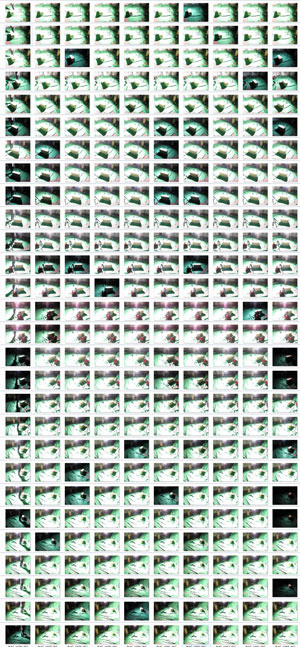

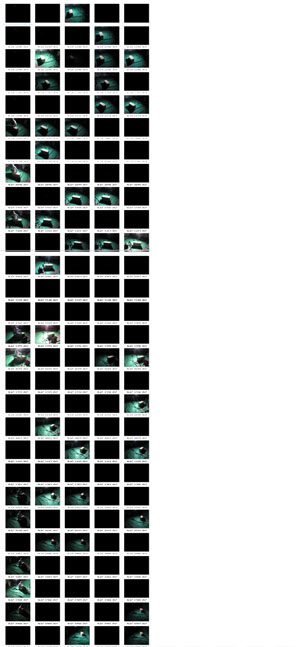

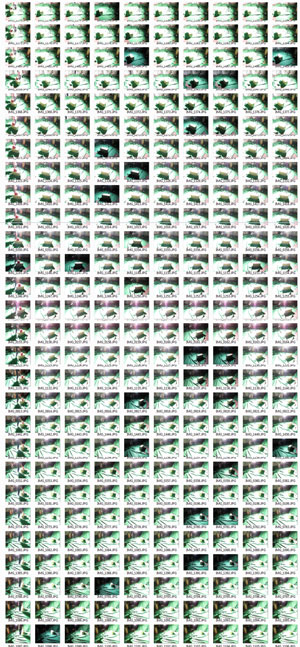

ROWS = CAMERAS, COLUMNS = SHOTS | |||
USING SCRIPT, 1/60 | WITHOUT SCRIPT 1/60 | WITHOUT SCRIPT 1/40 | USING SCRIPT 1/1000 |
TOTAL SHOTS = 280 GOOD/ADJUSTABLE SHOTS= 234 BAD SHOTS = 46 RATIO = 83% GOOD/ADJUSTABLE SEQUENCES=1 |
TOTAL SHOTS = 280 GOOD/ADJUSTABLE SHOTS= 252 BAD SHOTS = 28 RATIO = 90% GOOD/ADJUSTABLE SEQUENCES=2 |
TOTAL SHOTS = 280 GOOD/ADJUSTABLE SHOTS= 254 BAD SHOTS = 26 RATIO = 91% GOOD/ADJUSTABLE SEQUENCES=2 |
TOTAL SHOTS = 140 GOOD/ADJUSTABLE SHOTS= 1 BAD SHOTS = 139 RATIO = ~0% GOOD/ADJUSTABLE SEQUENCES=0 |
